Phoenix Setup

BODY END HTML

$('<svg data-name="Layer 1" xmlns="http://www.w3.org/2000/svg" class="svgArrowTopL" viewBox="0 0 1200 120" preserveAspectRatio="none"><path d="M1200 0L0 0 892.25 114.72 1200 0z" class="shape-fill"></path></svg>').appendTo('.arrowTopL');

$('<svg data-name="Layer 1" xmlns="http://www.w3.org/2000/svg" class="svgArrowBtmL" viewBox="0 0 1200 120" preserveAspectRatio="none"><path d="M892.25 114.72L0 0 0 120 1200 120 1200 0 892.25 114.72z" class="shape-fill"></path></svg>').appendTo('.arrowBtmL');

$('<svg data-name="Layer 1" xmlns="http://www.w3.org/2000/svg" class="svgArrowTopR" viewBox="0 0 1200 120" preserveAspectRatio="none"><path d="M1200 0L0 0 892.25 114.72 1200 0z" class="shape-fill"></path></svg>').appendTo('.arrowTopR');

$('<svg data-name="Layer 1" xmlns="http://www.w3.org/2000/svg" class="svgArrowBtmR" viewBox="0 0 1200 120" preserveAspectRatio="none"><path d="M892.25 114.72L0 0 0 120 1200 120 1200 0 892.25 114.72z" class="shape-fill"></path></svg>').appendTo('.arrowBtmR');

</script>

HEAD HTML

SITES.CSS

Things to note in the CSS.

The default background of the demo is #f3f3f3 so there are references "ANGLE TOP..." & "ANGLE BOTTOM..." to that in the angle CSS, either change the background of the site to #f3f3f3 or change the CSS to #ffffff if the background is white etc.
Add the "u_########" number of the image header ROW to the classes under "BACKGROUND COLOUR OF ANGLES UNDER VIDEO HEADER"
If you have a dark header for Phoenix, uncomment the CSS "CUSTOM HEADER ANGLE COLOUR" to change the colour of the angle below the header.
Internal Page: There is a CSS section "HIDE INTERNAL HEADER FROM HOME" for hiding the inner head divider once it's added into the head.

/* GLOBAL SITE CSS - ADD CSS TO AFFECT THE WHOLE SITE */

@media screen and (min-width:1200px) {

.rows-1200 .dmRespDesignRow, .rows-1200 .dmRespRow:not(.fullBleedMode) .dmRespColsWrapper { max-width: 1500px }

}

/* FIX FOOTER BUTTON PADDING */

#dm .dmFooterContainer .dmform .dmformsubmit { margin: 0px 15px; }

*#dm div.dmNewParagraph a,

*#dm div.dmCustomHtml a,

*#dm div.dmBlockElement a { text-decoration: none !important; font-weight: 700 !important; -webkit-transition: color 0.4s ease-in !important; -o-transition: color 0.4s ease-in !important; outline: 0 !important; }

*#dm div.dmCustomHtml a:hover,

*#dm div.dmNewParagraph a:hover,

*#dm div.dmBlockElement a:hover { color:#06B7E0 !important; text-decoration: none !important; font-weight: 700 !important; }

/* BLOG WIDGET PADDING */

#dm [list-layout=layout4][text-box-padding=true] .postArticle .postText { padding: 30px 30px 0 30px !important; }

#dm [blog-posts-feature-flag=true][text-box-padding=true]:not([list-layout=list_slider]) .postTextContainer .readMore { padding: 15px 30px 30px 30px !important; }

/* ANGLE TOP - CHANGE SHAPE-FILL TO BACKGROUND COLOUR */

.svgArrowTopR { position: absolute; display: block; width:100%; height: 30px; left:0; top: 0px; }

.svgArrowTopR .shape-fill { fill: #f3f3f3; }

.svgArrowTopL { position: absolute; display: block; width:100%; height: 30px; left:0; top: 0px; transform: rotateY(180deg); }

.svgArrowTopL .shape-fill { fill: #f3f3f3; }

/* ANGLE BOTTOM - CHANGE SHAPE-FILL TO BACKGROUND COLOUR */

.svgArrowBtmL { position: absolute; display: block; width:100%; height: 30px; left:0; bottom: -1px; transform: rotateY(180deg); }

.svgArrowBtmL .shape-fill { fill: #f3f3f3; }

.svgArrowBtmR { position: absolute; display: block; width:100%; height: 30px; left:0; bottom: -1px; }

.svgArrowBtmR .shape-fill { fill: #f3f3f3; }

/* BACKGROUND COLOUR OF ANGLES UNDER VIDEO HEADER */

.u_######## .svgArrowBtmR .shape-fill { fill: #418696; }

.u_######## .svgArrowBtmL .shape-fill { fill: #418696; }

/* CUSTOM WAVE COLOUR BETWEEN TWO COLOURED SECTIONS

.u_######## .svgArrowTopR .shape-fill { fill: #000000; }

.u_######## .svgArrowTopL .shape-fill { fill: #000000; }

.u_######## .svgArrowBtmR .shape-fill { fill: #000000; }

.u_######## .svgArrowBtmL .shape-fill { fill: #000000; }

/* CUSTOM HEADER ANGLE COLOUR

.dmHeaderContainer .svgArrowTopL .shape-fill,

.dmHeaderContainer .svgArrowtopR .shape-fill { fill:#000000; } */

/* HIDE INTERNAL HEADER FROM HOME */

#dm .dm-layout-home .u_########## { display:none; }

/* OVERLAP HOME HEADER

#dm .dm-layout-home .dmHeaderContainer { position: absolute; z-index: 101; width: 100%; }*/

Header

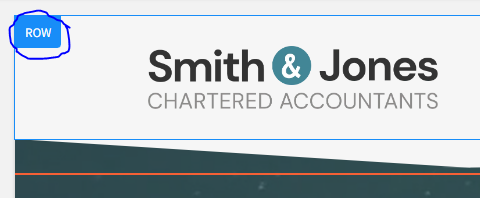

NOTE: There are two header rows, one with the logo/navigation and the row below is the angle.
Change the background of the header to transparent. (by default its white)
Lock the header row, not the whole header because we want to allow the client to change the internal divider.

After you have both ROWs in the header then un-comment the CSS with the heading "OVERLAP HOME HEADER" to allow it to float over the video.

Internal Header

Once you have imported the internal page, move the divider image into the header, set the top margin of the divider row to -50px (negative 50px)

Once you have done that find the "u_#########" class on the image divider row and add it to the SITE.CSS file where is already setup "HIDE INTERNAL HEADER FROM HOME"

Add appropriate overlay colour

Change Static Image to a Video

Pick something from the video library you think will suit, and add overlay.

Alternate Footer Options

Delete the alternate map based on the clients instructions.

Heading Sizes

H1 - 50
H2 - 40
H3 - 30
H4 - 20

Internal Page Menu

If the pages are applicable (e.g. if they exist and/or have sub-menu items) copy the "Side Navigation" from the internal page section and add it into:

Firm Profile
Firm Profile > Join Our Team
Firm Profile > Join Our Team > Apply Online
All sub pages under Resources

Custom Contact Layout

Change the layout of the "Contact Details" page to match the demo.

Adding Waves to Rows

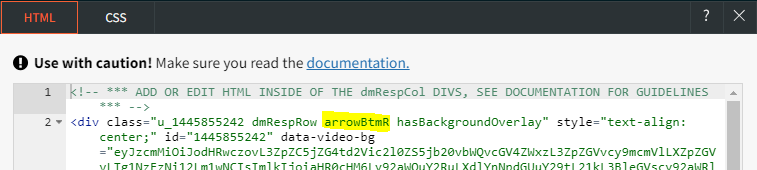

To add waves to other rows: Go into the ROW CSS/HTML and add the class:

arrowTopR - Angle Top - Short side on right
arrowTopL - Angle Top - Short side on left
arrowBtmR - Angle Bottom - Short side on right
arrowBtmL - Angle Bottom - Short side on left
